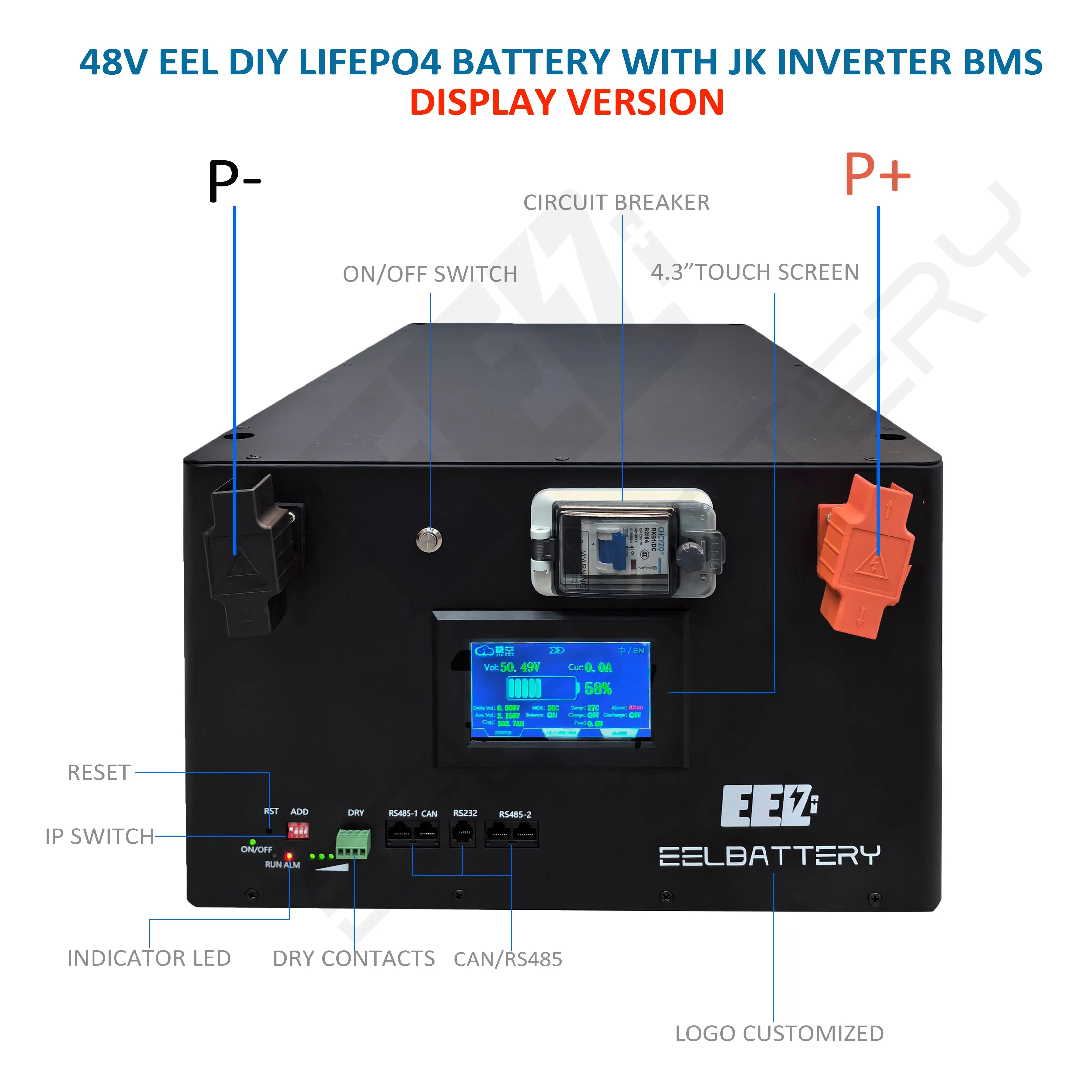

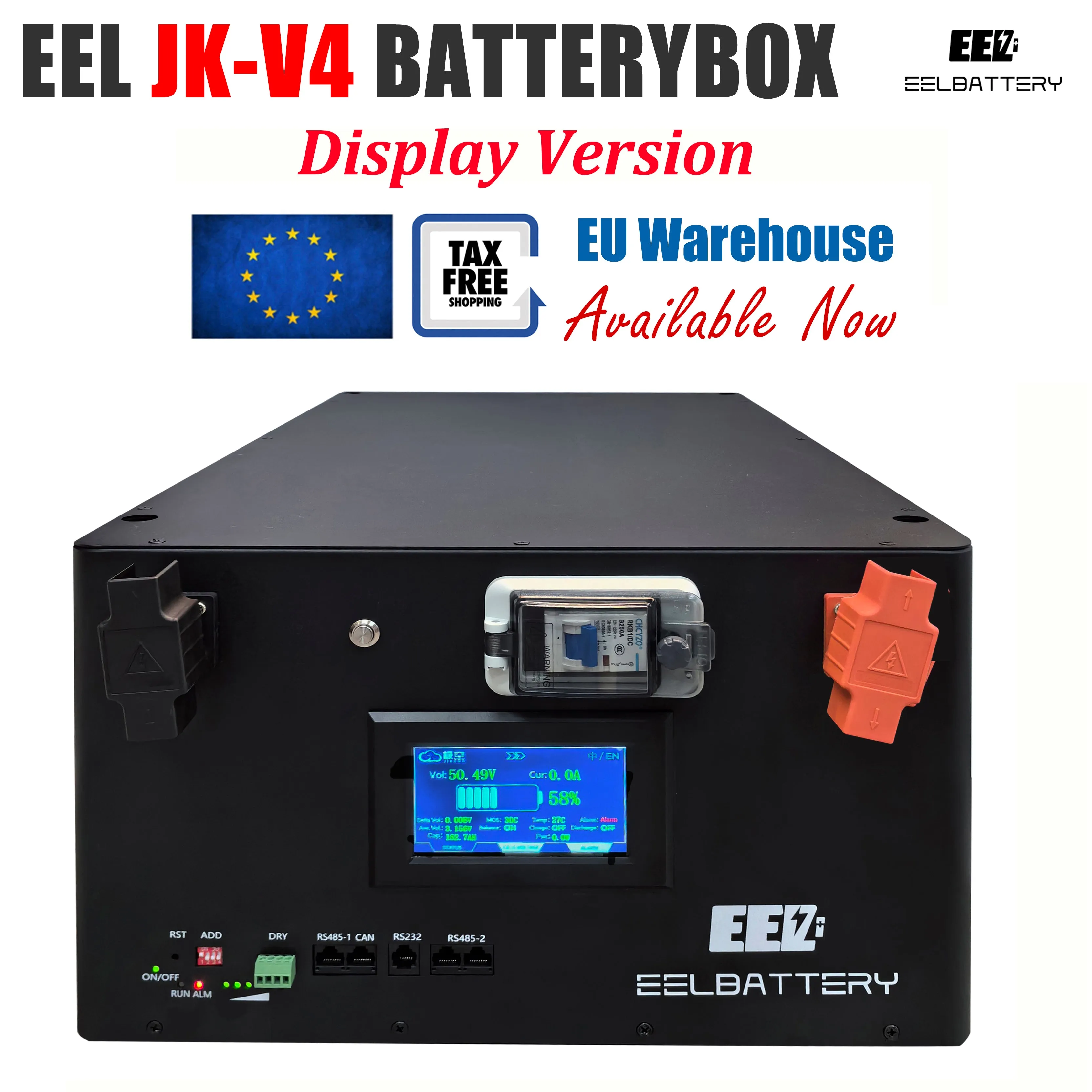

Specification(V4-JK BMS box)
Battery Type:230/280/302/MB30/MB31 Cells
Material: Stainless Steel
Communication: CANBUS and RS485(accept both)
BMS: 48V 16S JK-PB2A16S15P/PB2A16S20P
Nominal Voltage:51.2V
Current 150/200A
Warranty:5 Years

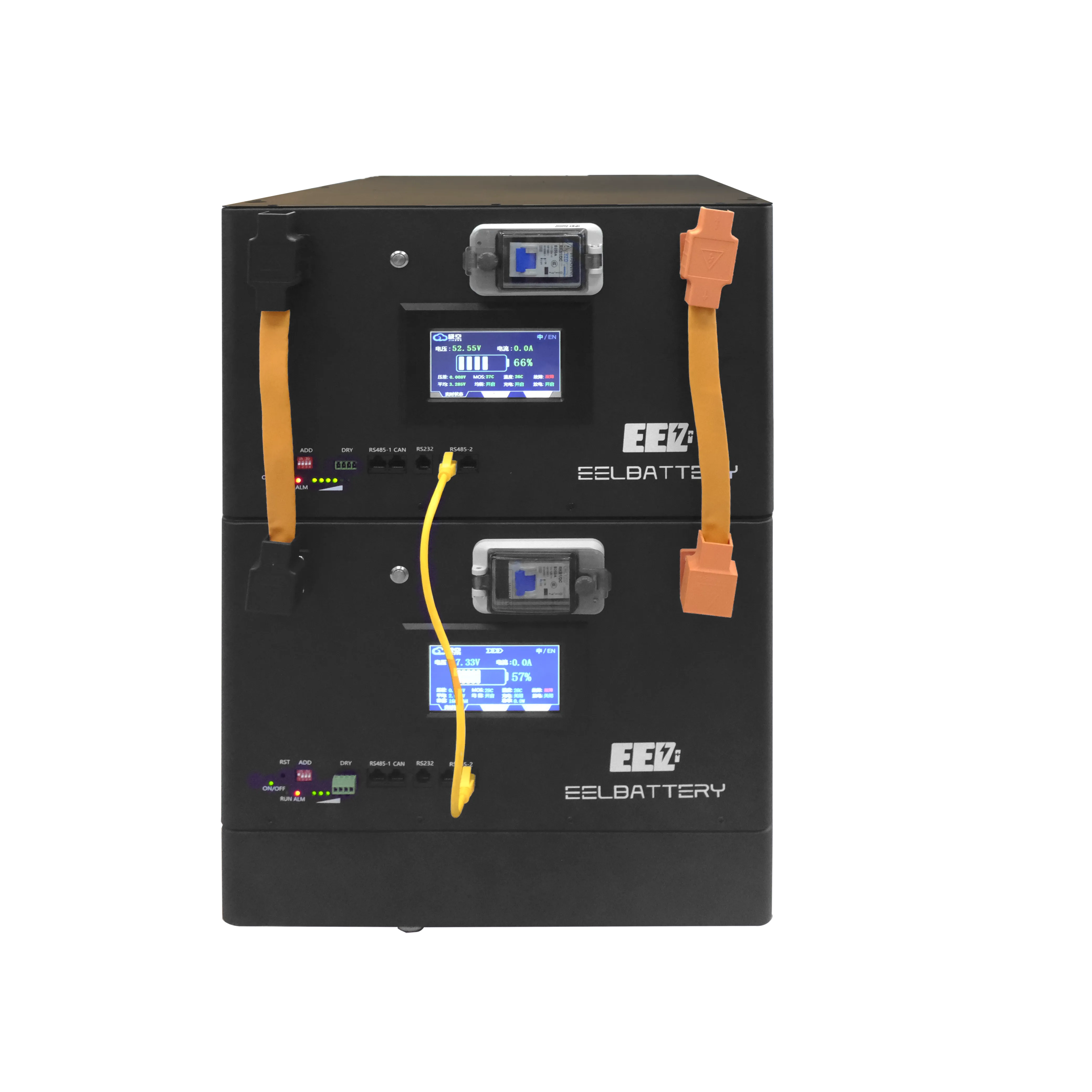

Battery Pack Type: Stackable
OEM/ODM: Available
Weight:29kg
Size:415*700*263mm
Shipping from: Poland warehouse
Parts List(does not come with the battery cells)
1 * V4 Battery Case (Bottom case, Front Bracket, 2*Top Bracket, Front Panel,Top cover)
16 * Epoxy board(Between cell and the case)

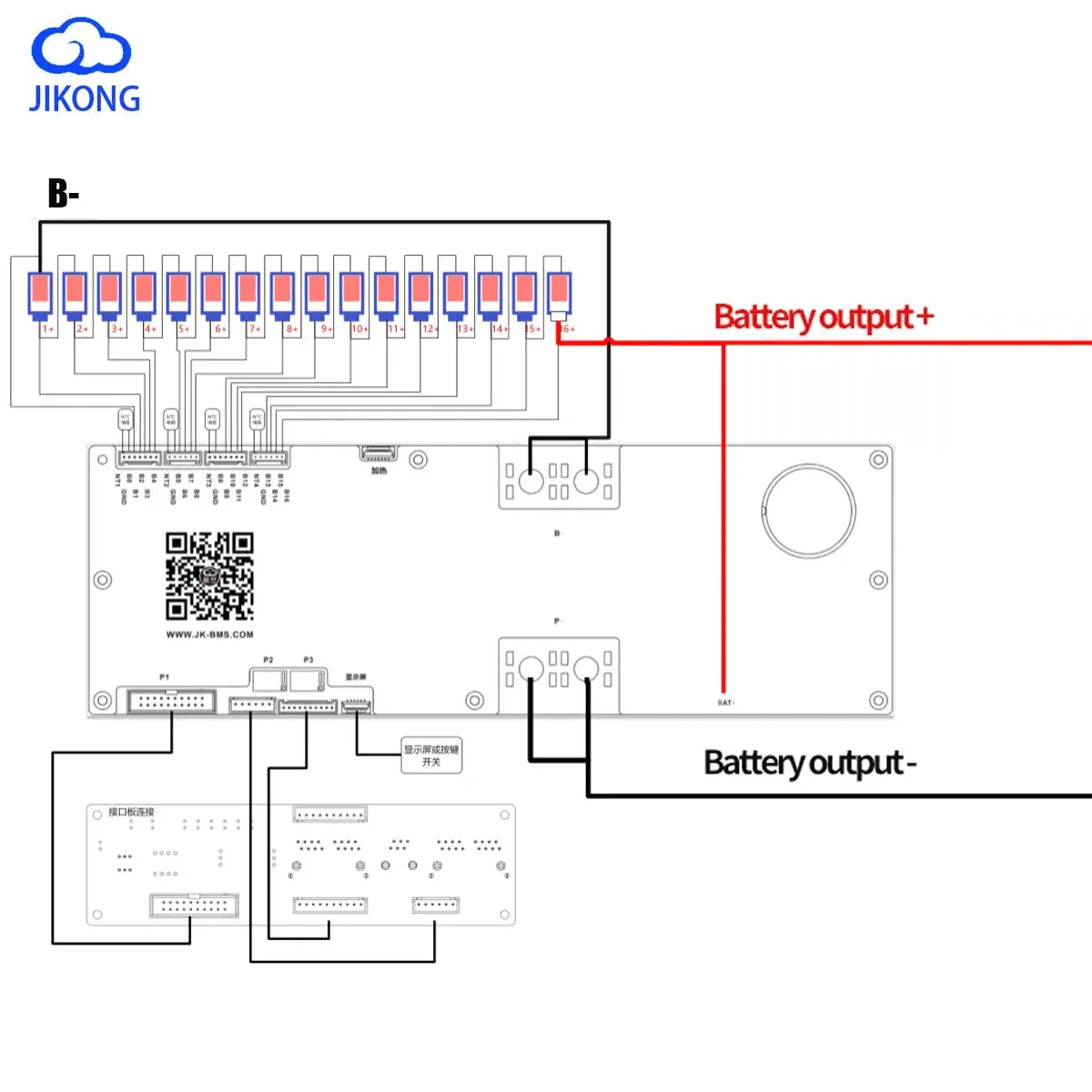

2 * PCB Board(with sheet copper wires) for BMS and Cells Connection 2*matched EVA Tape
1 * Weak electric switch
1 * 4.3 Inch touch JK display screen(Optional)

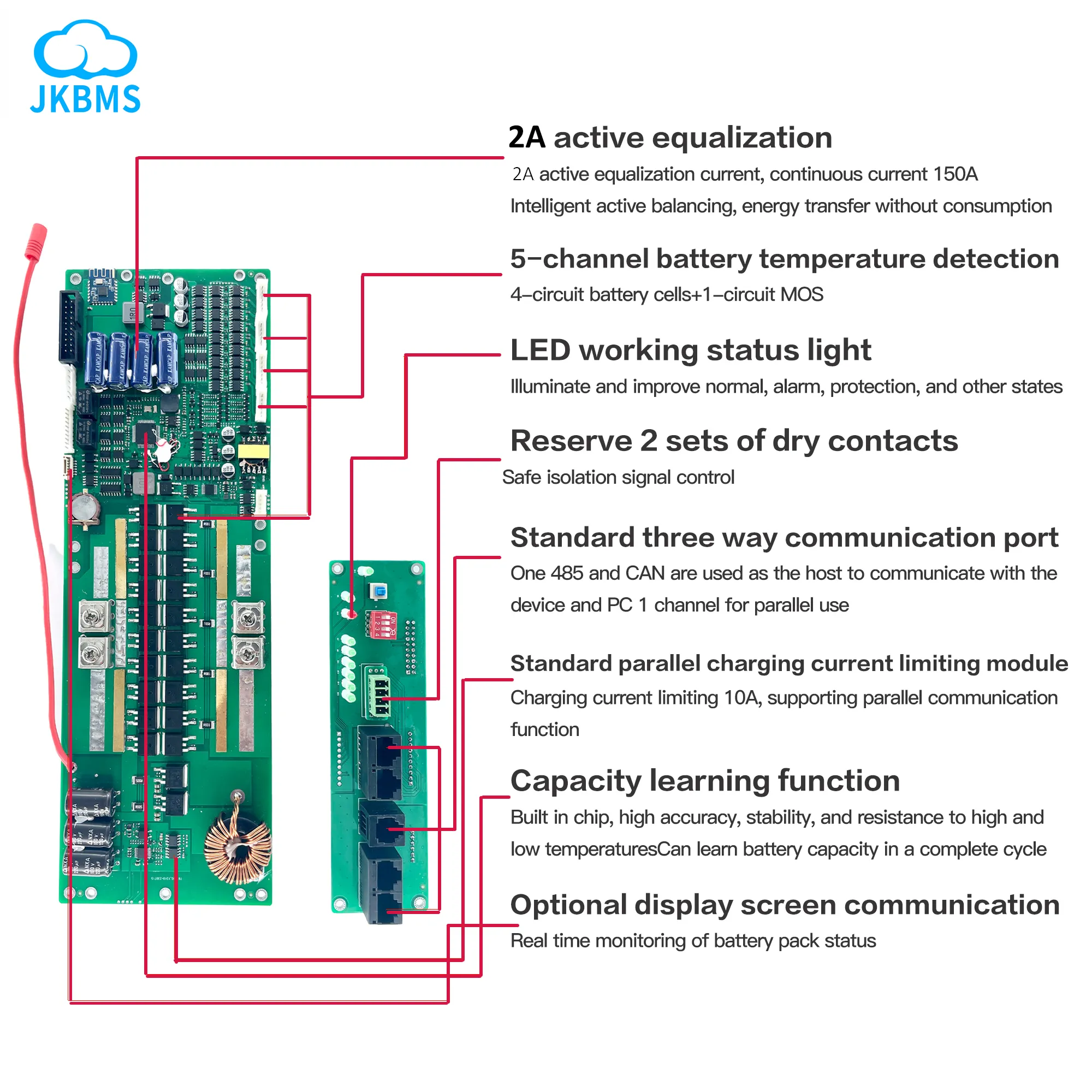

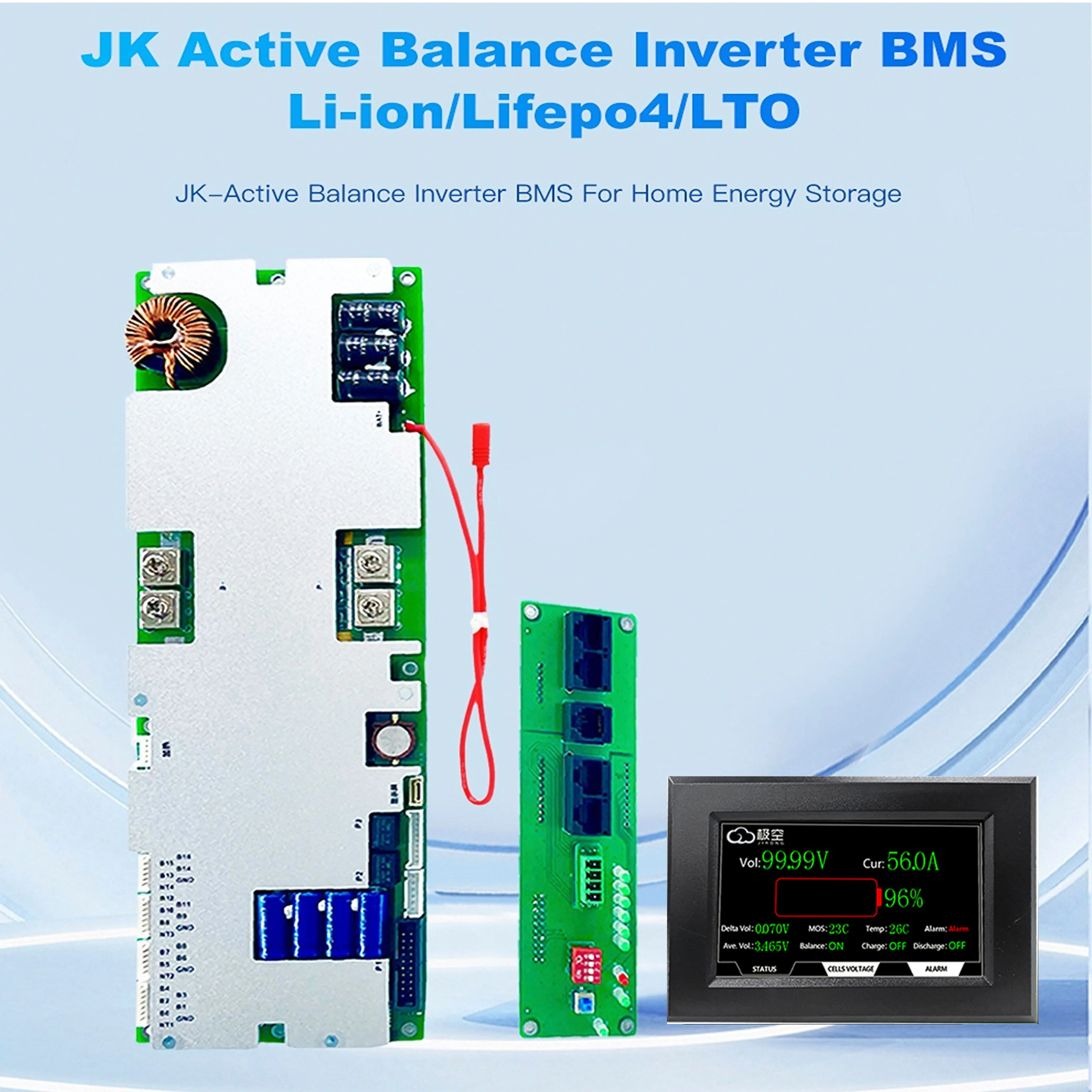

1 * 48V 16S JK BMS(JK-PB2A16S20P) 2*BMS busbars
1 * Circuit Breaker
2 * Battery Terminals (P Terminal and P- Terminal)
3 * Long Flexible busbars (BMS connection)
15 * Flexible busbars (Cell connection)
4 * Handle
4 * Upper and Lower Latch lock
10 * EVA Tape (Between cells)
Other Small Accessories/DDP door-to-door shipping
JK BMS Box software:
Pre-sale: Estimated shipping date: 8 Dec. 2024 (in 25 days)
UPS/DHL DDP shipping to
